KERN & SOHN EFC 300K-2 EFC Platform Scale, 300 kg Capacity, 0.02 kg Readability, RS-232

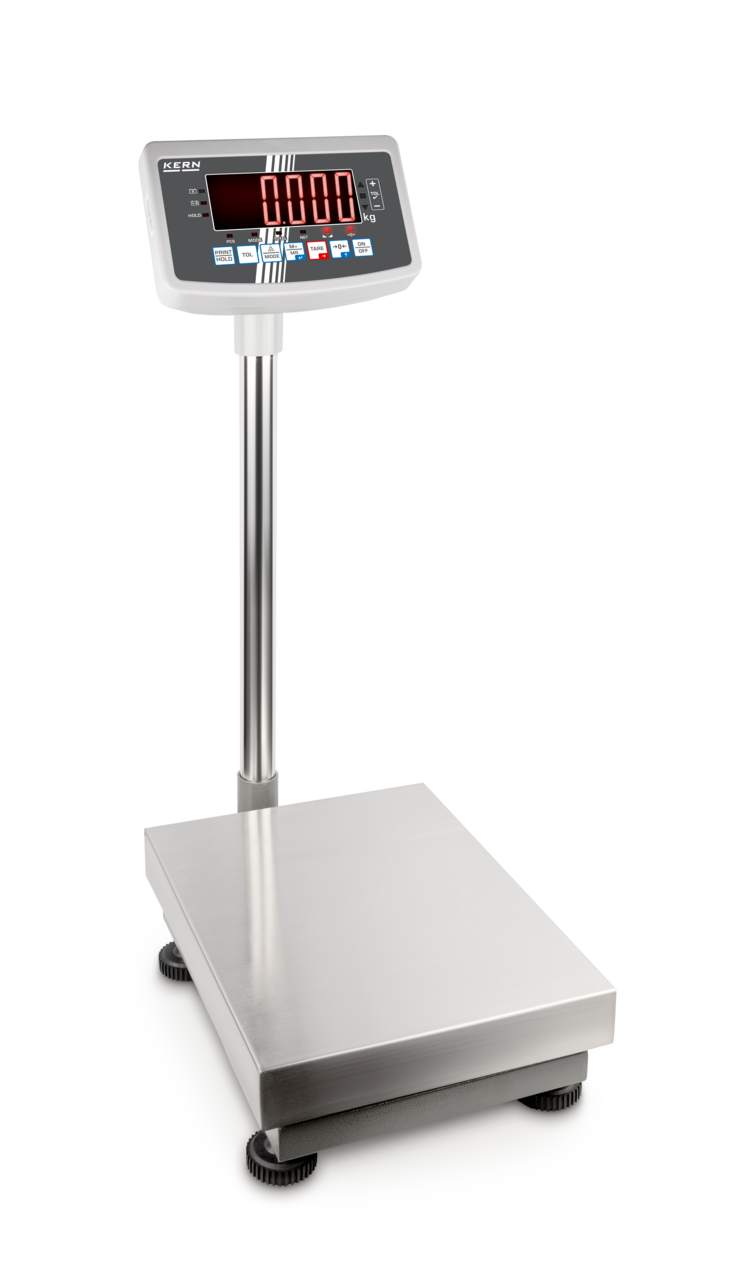

KERN & SOHN EFC 300K-2 Platform Scale — 300 kg Capacity, 0.02 kg Readability

The KERN & SOHN EFC 300K-2 Platform Scale pairs a single aluminium load cell with a 0.02 kg readability and a lacquered steel platform built for industrial daily use. Its steel, lacquered frame, single aluminium load cell, LED segment display, and RS-232 output make it a straightforward, durable solution for high-throughput weighing in production lines, loading docks, and goods-in areas.

Key Features

• Industrial steel, lacquered frame: The heavy-duty platform withstands repetitive loading on busy industrial floors without deforming under sustained high-weight use.
• Single aluminium load cell with 4-wire connection: A robust single-cell design with a 15.000-division resolution delivers 0.02 kg readability and 0.02 kg reproducibility across the full 300 kg range.
• Piece counting and recipe summing: Built-in counting and Sum-A recipe mode let operators total batches and count parts without additional instruments.
• Rotatable and inclinable display stand: The 600 mm indicator stand adjusts angle and orientation so operators always read at eye level regardless of platform placement.
• RS-232 connectivity: Standard serial output transmits weight data to printers, PCs, and process control systems for automated documentation.
• Tolerance weighing: Configurable upper and lower thresholds guide operators through acceptance checks quickly without manual target lookups.
• Stainless steel weighing plate: The stainless steel surface resists corrosion from damp goods and cleaning agents, keeping the contact surface hygienic.

Detailed Overview

The KERN & SOHN EFC 300K-2 Platform Scale uses a 4-wire aluminium load cell and a lacquered steel, lacquered base with a stainless steel weighing plate. The 15.000-division resolution gives reliable results across a 300 kg range; linearity is ± 0.06 kg and eccentric load performance 0.1 kg. The compact display unit () mounts on an adjustable 600 mm stand. Calibration uses an external weight, with multiple calibration points available up to 300 kg. Warm-up is 30 min and operating temperature range is 0° to 40°C / 32° to 104°F.

Applications

• Incoming goods receipt and outbound freight verification
• Parts counting and batch assembly on production lines
• Capacity control on loading docks and in warehouses
• Recipe and batch totalizing in mixing and processing operations
• Retail and wholesale inventory checks requiring count-by-weight

Why Choose the KERN & SOHN EFC 300K-2?

The KERN & SOHN EFC 300K-2 Platform Scale combines industrial steel construction with counting, tolerance checking, and recipe totalizing functions that cover the most common production and logistics weighing needs. Its simple external calibration, standard RS-232 output, and adjustable display stand make integration into existing workflows straightforward. Available at Weighcore.
