KERN & SOHN EFC 100K-3L EFC Platform Scale, 150 kg Capacity, 0.01 kg Readability, RS-232

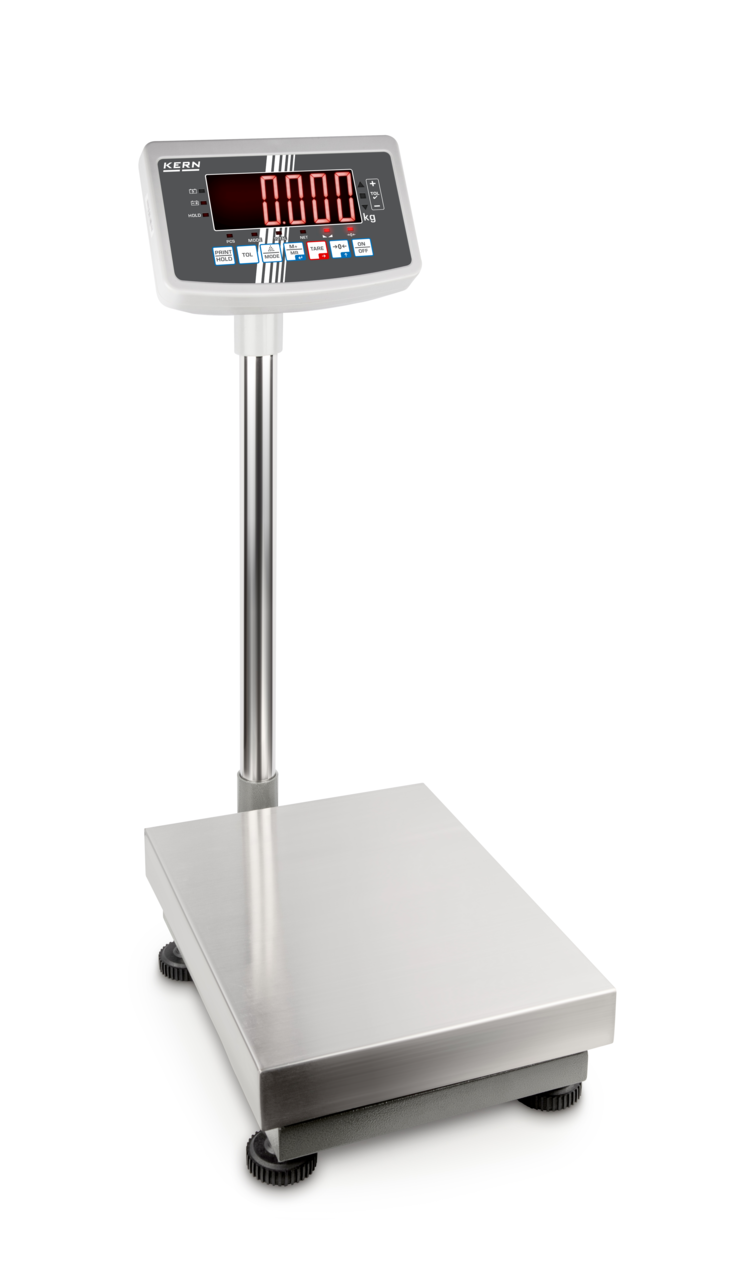

KERN & SOHN EFC 100K-3L Platform Scale — 150 kg Capacity, 0.01 kg Readability

Designed for high-throughput production and logistics environments, the KERN & SOHN EFC 100K-3L Platform Scale delivers 150 kg capacity at 0.01 kg readability. Its steel, lacquered frame, single aluminium load cell, LED segment display, and RS-232 output make it a straightforward, durable solution for high-throughput weighing in production lines, loading docks, and goods-in areas.

Key Features

• Industrial steel, lacquered frame: The heavy-duty platform withstands repetitive loading on busy industrial floors without deforming under sustained high-weight use.
• Single aluminium load cell with 4-wire connection: A robust single-cell design with a 15.000-division resolution delivers 0.01 kg readability and 0.01 kg reproducibility across the full 150 kg range.
• Piece counting and recipe summing: Built-in counting and Sum-A recipe mode let operators total batches and count parts without additional instruments.
• Rotatable and inclinable display stand: The 600 mm indicator stand adjusts angle and orientation so operators always read at eye level regardless of platform placement.
• RS-232 connectivity: Standard serial output transmits weight data to printers, PCs, and process control systems for automated documentation.
• Tolerance weighing: Configurable upper and lower thresholds guide operators through acceptance checks quickly without manual target lookups.
• Stainless steel weighing plate: The stainless steel surface resists corrosion from damp goods and cleaning agents, keeping the contact surface hygienic.

Detailed Overview

The KERN & SOHN EFC 100K-3L Platform Scale uses a 4-wire aluminium load cell and a lacquered steel, lacquered base with a stainless steel weighing plate. The 15.000-division resolution gives reliable results across a 150 kg range; linearity is ± 0.03 kg and eccentric load performance 0.05 kg. The compact display unit () mounts on an adjustable 600 mm stand. Calibration uses an external weight, with multiple calibration points available up to 150 kg. Warm-up is 30 min and operating temperature range is 0° to 40°C / 32° to 104°F.

Applications

• Incoming goods receipt and outbound freight verification
• Parts counting and batch assembly on production lines
• Capacity control on loading docks and in warehouses
• Recipe and batch totalizing in mixing and processing operations
• Retail and wholesale inventory checks requiring count-by-weight

Why Choose the KERN & SOHN EFC 100K-3L?

The KERN & SOHN EFC 100K-3L Platform Scale combines industrial steel construction with counting, tolerance checking, and recipe totalizing functions that cover the most common production and logistics weighing needs. Its simple external calibration, standard RS-232 output, and adjustable display stand make integration into existing workflows straightforward. Order today from Weighcore.
