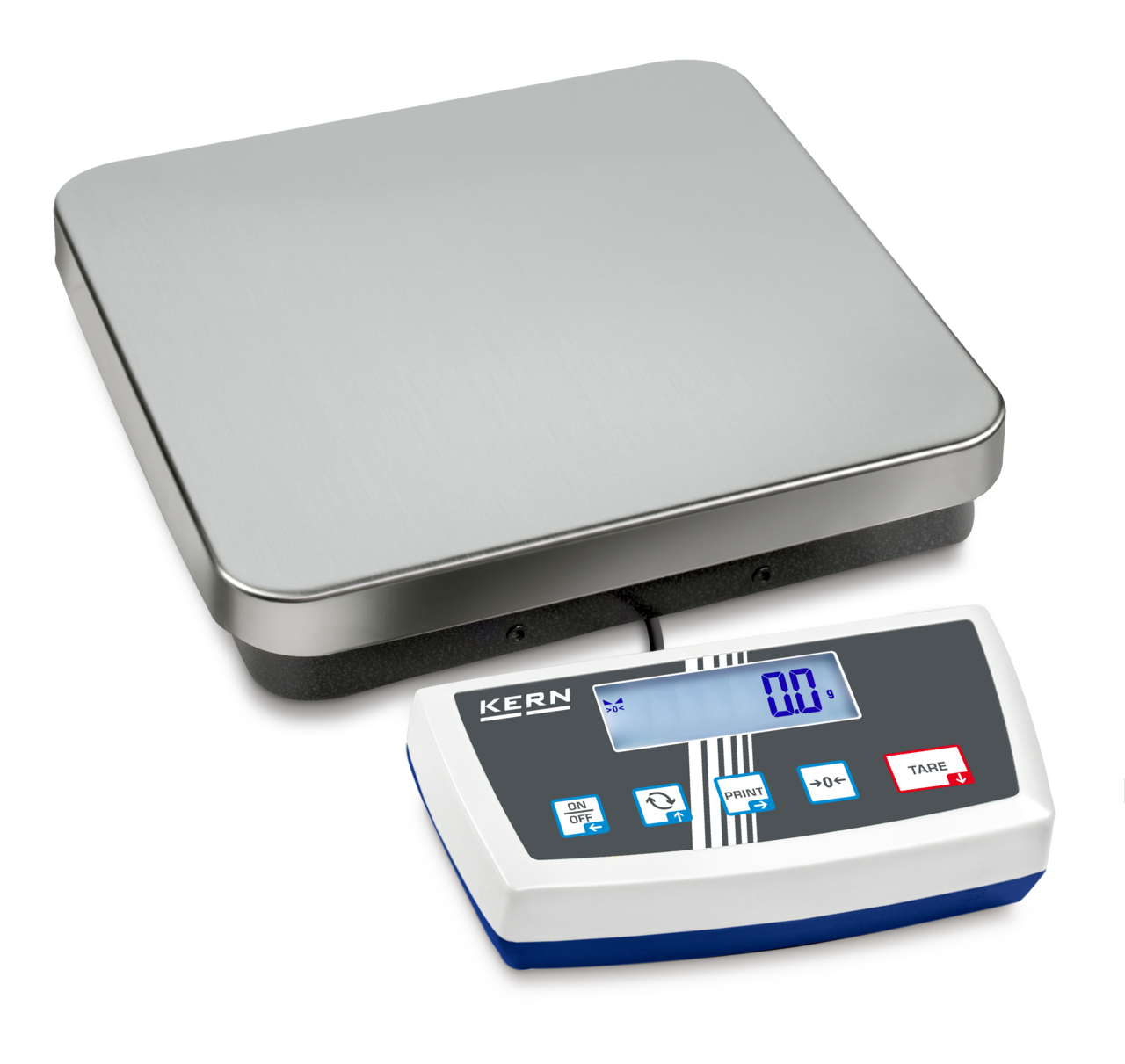

KERN & SOHN DS 20K0.1 DS Platform Scale, 20 kg Capacity, 0.0001 kg Readability, RS-232 / USB

KERN & SOHN DS 20K0.1 Platform Scale — 20 kg Capacity, 0.0001 kg Readability

When a workflow demands both high capacity and fine resolution, the KERN & SOHN DS 20K0.1 Platform Scale delivers 20 kg at 0.0001 kg readability. Built on a strain-gauge load cell with a stainless steel weighing surface and a backlit LCD, it suits production lines, QC labs, and logistics operations requiring traceable, efficient weighing with RS-232 (optional); Ethernet (optional); Bluetooth BLE (v4.0); USB-Device (optional); KUP; WiFi (optional) data output.

Key Features

• High-resolution strain-gauge system: A 200.000-division resolution at 0.0001 kg readability delivers consistent, repeatable results across the full 20 kg range.
• Stainless steel weighing plate: The stainless steel surface resists corrosion and cleans quickly between samples, maintaining hygiene on shared workstations.
• Backlit LCD display: The illuminated readout stays legible in low-light warehouses, production floors, and dock areas without straining operator vision.
• Multiple weighing modes: Piece counting, percentage determination, tolerance weighing, and sum memory are built in — no additional accessories or software required.
• Multi-point external calibration: Calibrate at up to five points (5 kg; 10 kg; 15 kg; 20 kg) for traceability across the full range; PreTare eliminates container weight before sampling.
• Adjustable indicator stand: The display mounts on a 450 mm rotatable, inclinable stand or directly to a wall, adapting to bench and floor layouts.
• RS-232 (optional); Ethernet (optional); Bluetooth BLE (v4.0); USB-Device (optional); KUP; WiFi (optional) data output: Standard digital connectivity enables direct transfer to printers, PCs, and data-capture systems without proprietary middleware.

Detailed Overview

The KERN & SOHN DS 20K0.1 Platform Scale pairs a lacquered metal frame with a stainless steel weighing surface and a 200.000-division strain-gauge system. Its 20 kg capacity and 0.0001 kg readability cover both high-load and fine-detail tasks; reproducibility is 0.0001 kg and linearity ± 0.0003 kg. The compact indicator (225×115×60 mm) mounts on an adjustable 450 mm stand or wall, keeping the display within easy sight. Warm-up takes 120 min before critical measurements, and the platform operates from -10° to 40°C / 14° to 104°F.

Applications

• Goods-receipt and dispatch weighing in warehouses and distribution centers
• Parts counting and batch control on production lines
• QC tolerance checking for incoming and outgoing materials
• Portioning and recipe weighing in food processing environments
• Laboratory bench weighing where a larger platform footprint is required

Why Choose the KERN & SOHN DS 20K0.1?

The KERN & SOHN DS 20K0.1 Platform Scale combines proven strain-gauge accuracy, a corrosion-resistant weighing surface, and built-in counting and tolerance modes into one compact industrial instrument. Its five-point calibration and standard RS-232 (optional); Ethernet (optional); Bluetooth BLE (v4.0); USB-Device (optional); KUP; WiFi (optional) output keep results traceable and data flowing without extra hardware. Add to cart at Weighcore.
