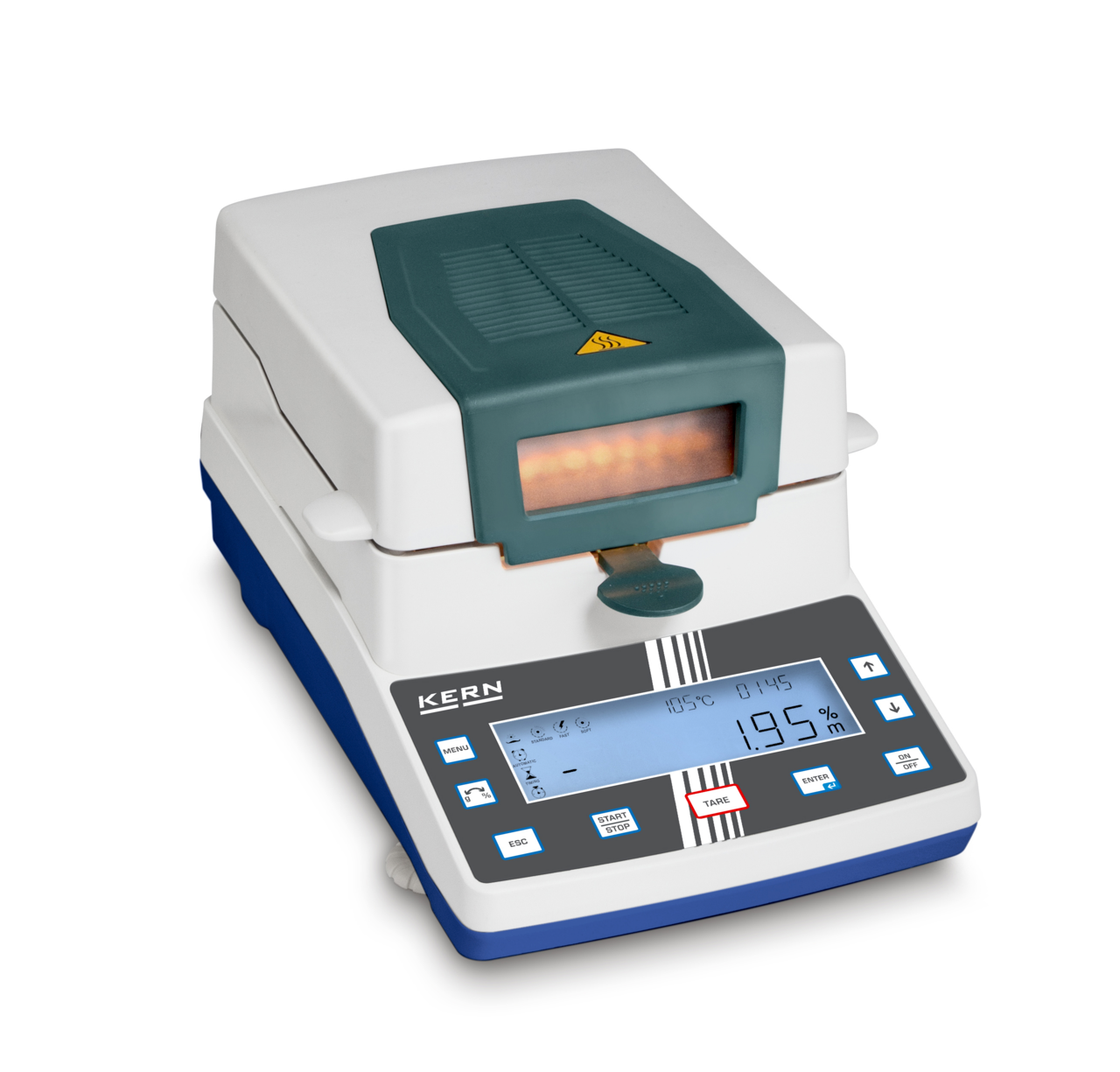

KERN & SOHN DAB 100-3IR DAB Moisture Analyzer, 110 g Capacity, 0.001 g Readability, Graphic Display, RS-232

KERN & SOHN DAB 100-3IR Moisture Analyzer — 110 g Capacity, 0.01% Moisture Readability

Dependable moisture testing across a 110 g sample range makes the KERN & SOHN DAB 100-3IR Moisture Analyzer a practical fit for QC labs, pilot plants and production quality stations. The KERN & SOHN DAB 100-3IR Moisture Analyzer uses a infrared heating element capable of reaching programmable temperature range, delivering rapid-drying performance on a wide range of sample chemistries with 0.001 g weight readability and 0.01% moisture readability. Built on a cast-aluminium and plastic housing with an integrated graphic display, it blends laboratory precision with the durability needed for daily QC workflows.

Key Features

• Infrared heating element (400 W): Delivers rapid, uniform heat across the 92 mm sample surface, reducing drying time without compromising moisture accuracy.
• Programmable drying temperature (programmable temperature range): Select the exact temperature in 1 °C increments to match the thermal sensitivity of each sample, from delicate organic materials to heat-hardy polymers.
• Multiple drying modes (Rapid drying): Switching between standard and rapid drying profiles lets operators balance cycle time against measurement precision for different materials.
• graphic LCD with backlight: Large, easy-to-read digits show moisture %, dry content, weight and temperature simultaneously, reducing the need to navigate menus during active drying.
• Temperature calibration points (100 °C; 160 °C): Two calibration reference points keep the heater traceable to certified standards for ISO-compliant moisture methods.
• Result memory (5 results): Internal storage captures completed tests for review and re-printing without connecting to an external device.

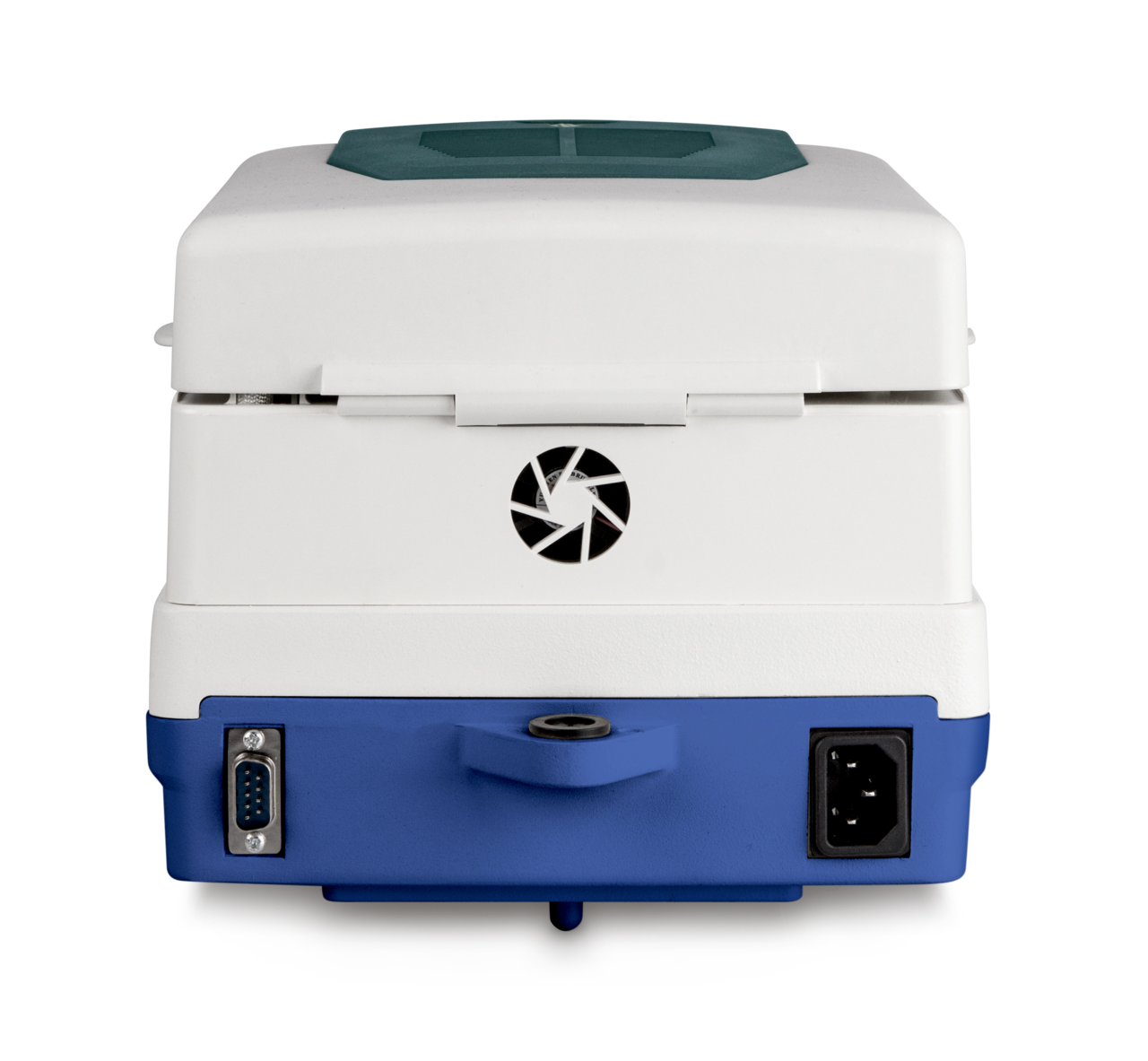

• RS-232 interface: Transmits weight and moisture results to printers, PCs and LIMS in formats compatible with GLP documentation requirements.

Detailed Overview

The KERN & SOHN DAB 100-3IR Moisture Analyzer is built around a infrared heater rated at 400 W, a aluminium sample plates weighing surface (92 mm diameter), and a cast aluminium, plastic housing. With 110 g maximum capacity, 0.001 g weight readability and 0.01% moisture readability, it resolves even small moisture differences in grain, powder, plastic and pharmaceutical samples.

Applications

• Moisture content determination in food processing and quality control labs
• Raw material acceptance testing in pharmaceutical and chemical manufacturing
• Polymer and plastics moisture testing before processing or molding
• Agricultural and grain quality monitoring for storage and milling applications
• Research and development formulation studies requiring precise moisture data

Why Choose the KERN & SOHN DAB 100-3IR?

Laboratories and production QA teams that need traceable, rapid moisture results on samples up to 110 g will find the KERN & SOHN DAB 100-3IR Moisture Analyzer well-matched to their daily workload. Its infrared heating, 0.01% moisture readability and RS-232 output make it a reliable tool for regulated and non-regulated environments alike. Buy at Weighcore.
