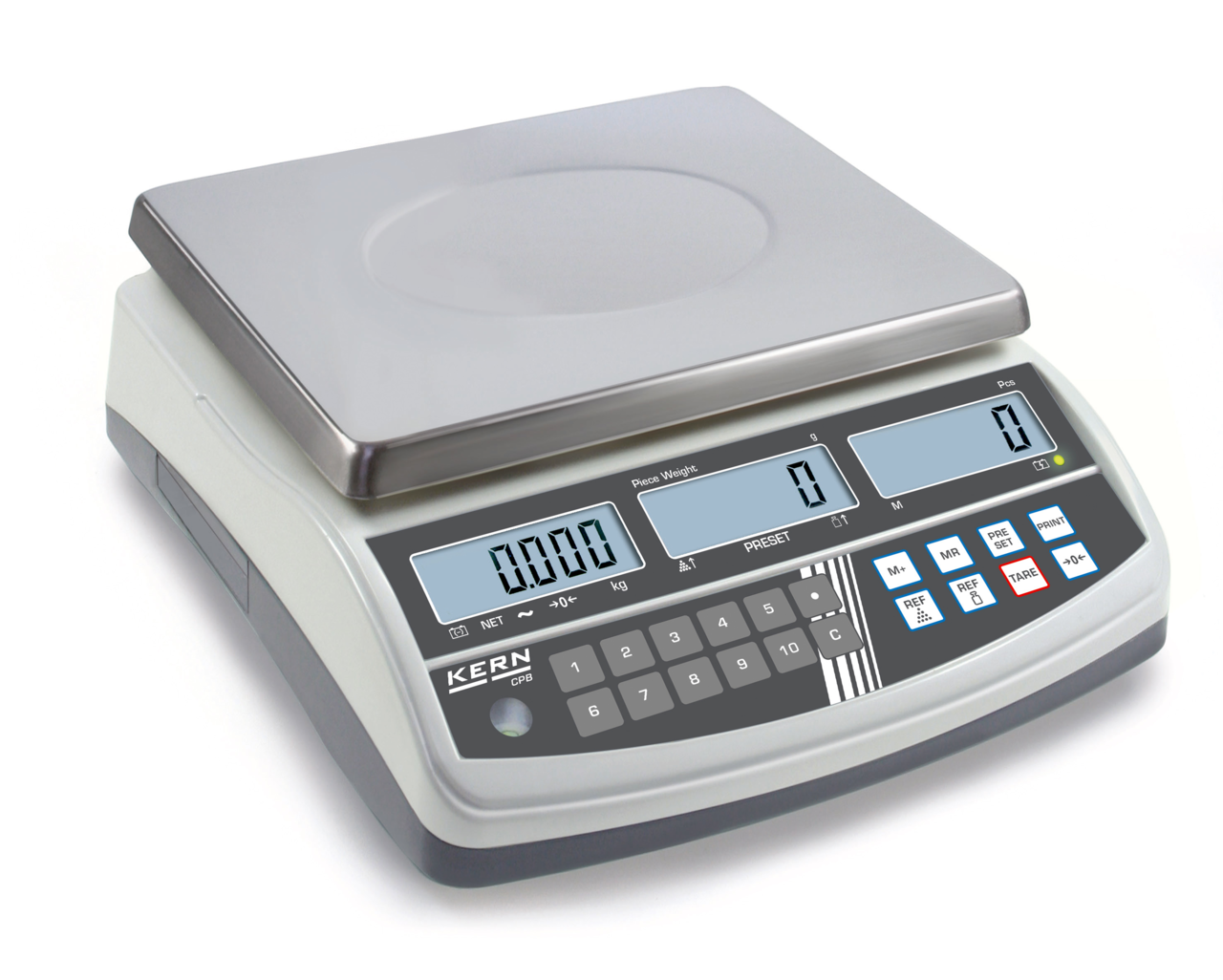

KERN & SOHN CPB 15K2DM CPB Counting Scale, 15 kg Capacity, 0.005 kg Readability, IP65 Rated, RS-232

KERN & SOHN CPB 15K2DM Counting Scale — 6 kg / 15 kg Capacity, 0.002 kg; 0.005 kg Readability

Combining a durable industrial-grade build with 6 kg / 15 kg capacity and 0.002 kg; 0.005 kg readability, the KERN & SOHN CPB 15K2DM Counting Scale is designed for count-critical environments. KERN & SOHN CPB 15K2DM Counting Scale keeps tallies accurate whether deployed on a production bench or in a workshop with variable ambient conditions.

Key Features

• High-resolution counting: A 3.000, 3.000-division internal resolution translates small reference samples into accurate piece counts, supporting inventory accuracy on items from tiny fasteners up to multi-kilogram components.
• Pre-tare function: Subtract known container weights before counting begins so only the net piece count registers — ideal for bins, totes, and repeat-use packaging on production lines.
• Tolerance weighing: Set upper and lower weight limits; the scale signals when a batch falls outside target — audibly or visually — reducing under-packs and over-fills in assembly and kitting operations.
• Sum-memory accumulation: Running totals accumulate across multiple samples, letting operators track batch weights or build multi-component recipes without manual notation.
• IP65-rated load cell: The load cell carries IP65 protection, adding resilience against wash-down splashes and fine particulates in manufacturing and processing environments.
• Data output — RS-232 standard: RS-232 standard port streams weight and count data to printers, PCs and ERP systems; optional USB, Bluetooth and Ethernet expansions are available.

Detailed Overview

The KERN & SOHN CPB 15K2DM Counting Scale is built on a strain-gauge load cell in a plastic housing (315×350×100 mm) with a stainless steel weighing plate. Capacity is 6 kg / 15 kg with 0.002 kg; 0.005 kg readability and ±0.004 kg; 0.01 kg linearity. Stabilization time is 2 s; warm-up is 10 min. The load cell is sealed to IP65 The RS-232 standard interface (with optional USB, Bluetooth and Ethernet) enables automated data transfer to printers and host systems. Operating range: -10° to 40°C / 14° to 104°F.

Applications

• Piece counting and inventory management in manufacturing and assembly operations
• Incoming goods inspection and goods-out batch verification in warehouses
• Kitting and parts dispatch on production lines and stockrooms
• Quality control weighing and tolerance checking in industrial settings

Why Choose the KERN & SOHN CPB 15K2DM?

Production supervisors and inventory managers who need dependable piece counts from a compact, industrial-grade scale will find the KERN & SOHN CPB 15K2DM Counting Scale well matched to their workload. 3.000, 3.000 divisions, 0.002 kg; 0.005 kg readability and dual-power flexibility make it a practical choice for both fixed bench stations and mobile counting duties. The stainless steel weighing plate and adjustable levelling feet keep setup fast on any bench, while the built-in sum memory and pre-tare functions support efficient batch processing without additional tooling. Shop now at Weighcore.
