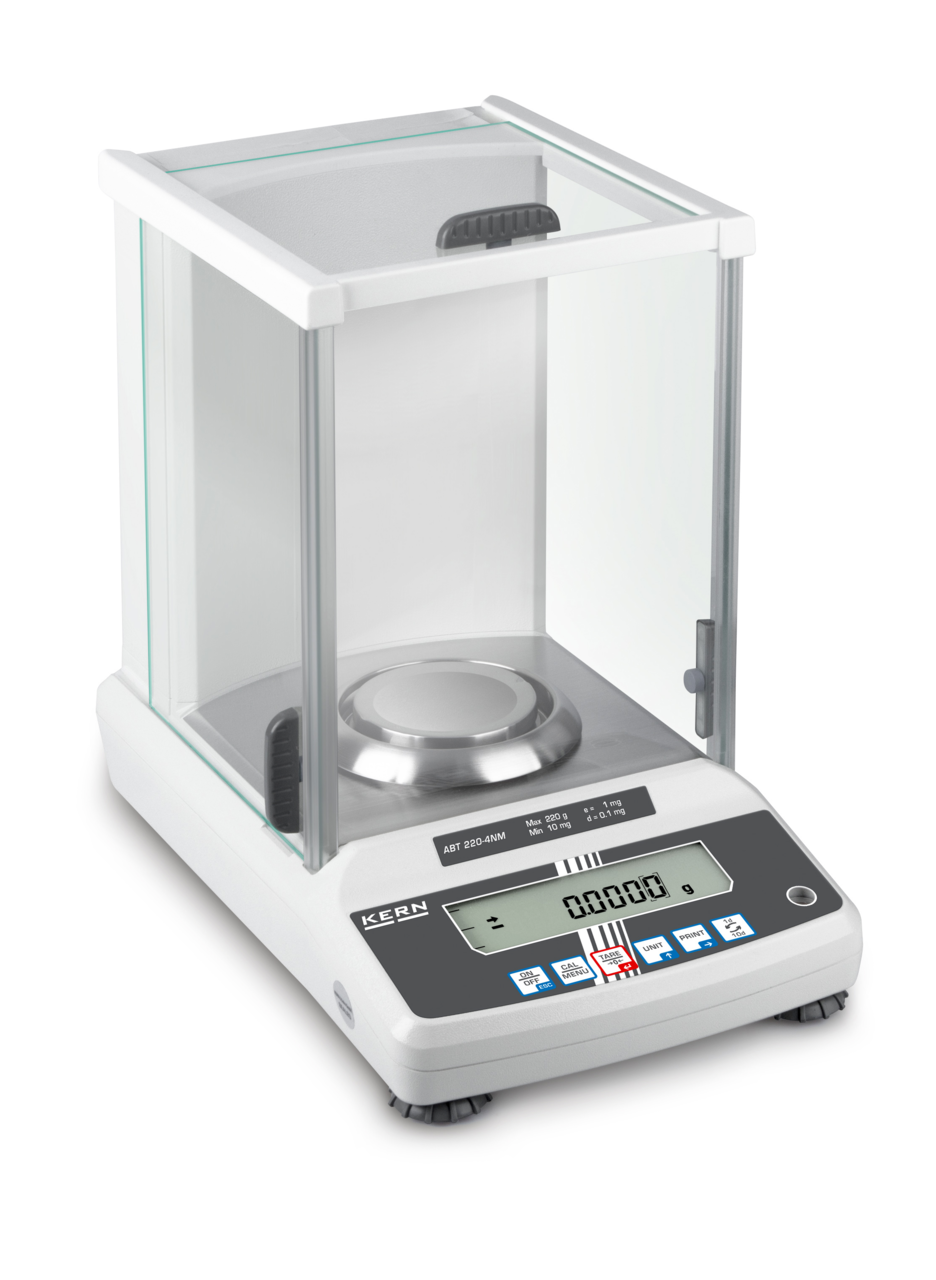

KERN & SOHN ABT 220-5DNM ABT Analytical Balance, 220 g Capacity, 0.0001 g Readability, Internal Calibration, RS-232

KERN & SOHN ABT 220-5DNM Analytical Balance — 82 g; 220 g Capacity, 0.00001 g; 0.0001 g Readability

Engineered for accuracy-critical laboratory tasks, KERN & SOHN ABT 220-5DNM Analytical Balance delivers 0.00001 g; 0.0001 g readability across a 82 g; 220 g weighing range in a robust metal-housed format with integrated glass draft shield. A glass draft shield, adjustable levelling feet, and level indicator support dependable analytical performance on any bench.

Key Features

• 82 g; 220 g Capacity at 0.00001 g; 0.0001 g Readability: Handles a wide range of analytical sample sizes with the precision required for pharmaceutical, chemical, and reference standard weighing.
• Internal Manual Calibration: Single-touch calibration via built-in weight removes the need to store separate calibration masses and keeps results traceable at any time.
• Metal Housing with Glass Draft Shield: The metal body provides lasting rigidity, while the glass shield protects the 80 mm Ø pan from air currents during sensitive measurements.

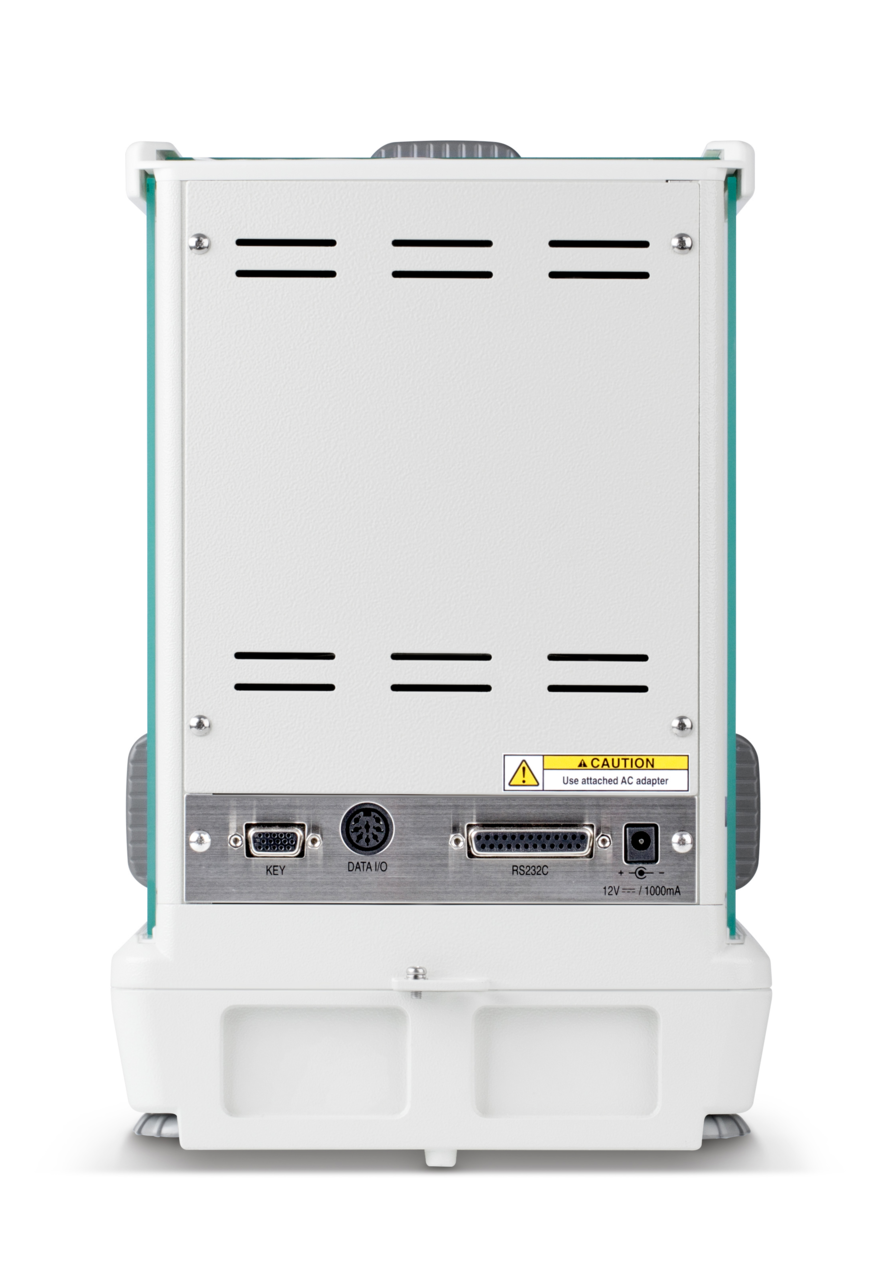

• RS-232 Interface: Standard serial output streams results to PC software, label printers, and data loggers for GLP-ready documentation.
• Multi-Function Application Suite: Density determination, counting, percentage, tolerance weighing, recipe/summing, and standby mode are all built in.
• Level Indicator & Adjustable Feet: On-board bubble level and four adjustable feet confirm correct horizontal positioning before each measurement run.
• Sum Memory & Statistical Output: Accumulate multiple readings for batch statistics, reducing manual recording errors in high-throughput workflows.

Detailed Overview

KERN & SOHN ABT 220-5DNM Analytical Balance achieves 0.00005 g; 0.0001 g reproducibility and ± 0.0001 g; 0.0002 g linearity with a typical reproducibility of 0.000007 g — well-matched to analytical method validation requirements. The 8.200.000, 2.200.000-count internal resolution underpins reliable parts counting and sub-milligram percentage work. Stabilization takes 10 s; 4 s, and an 8 h warm-up ensures thermal equilibrium. Housing dimensions of 215×340×335 mm suit standard benches, and the 220 g conditions) tare range accommodates heavy vessels while preserving effective resolution on the sample. RS-232 output feeds directly into LIMS and data loggers for traceable, GLP-aligned records.

Applications

• Analytical weighing in pharmaceutical, chemical, and materials research labs
• QC sample verification and reference standard preparation
• Formulation and recipe development with repeatable precision
• Density determination of solids and liquids via the built-in mode
• Educational analytical chemistry demonstrations

Why Choose the KERN & SOHN ABT 220-5DNM?

KERN & SOHN ABT 220-5DNM Analytical Balance provides the resolution, stability, and application breadth that modern analytical laboratories need, enclosed in a durable metal housing. Internal calibration and RS-232 output keep workflows streamlined and data traceable. Order today from Weighcore.
