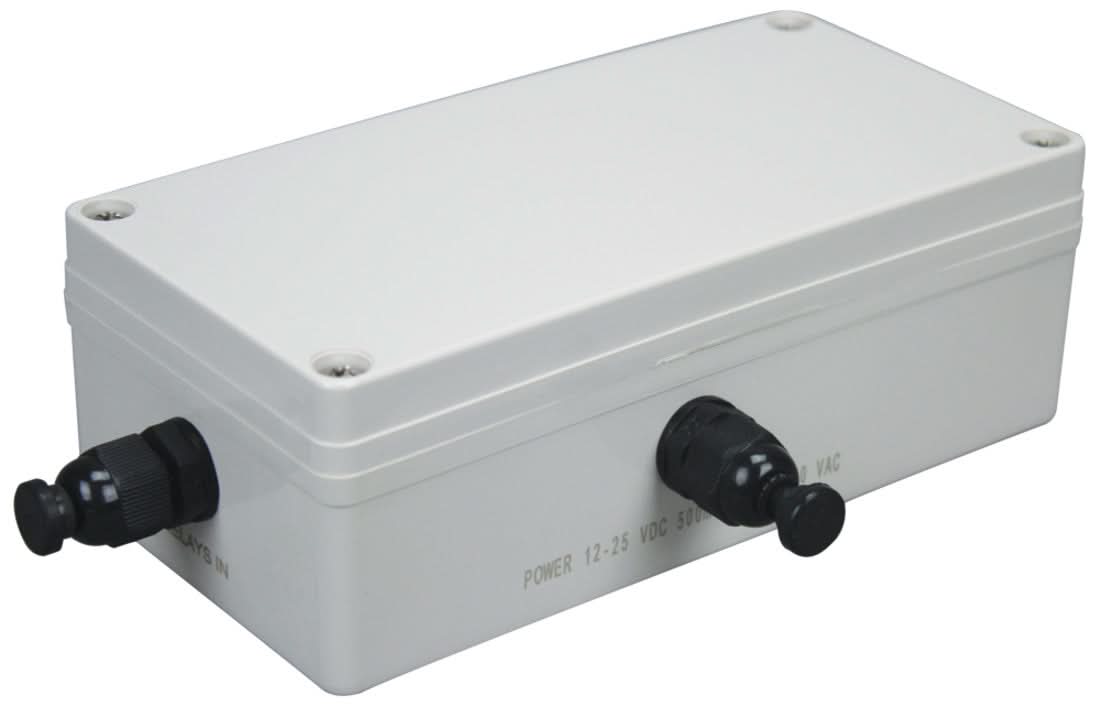

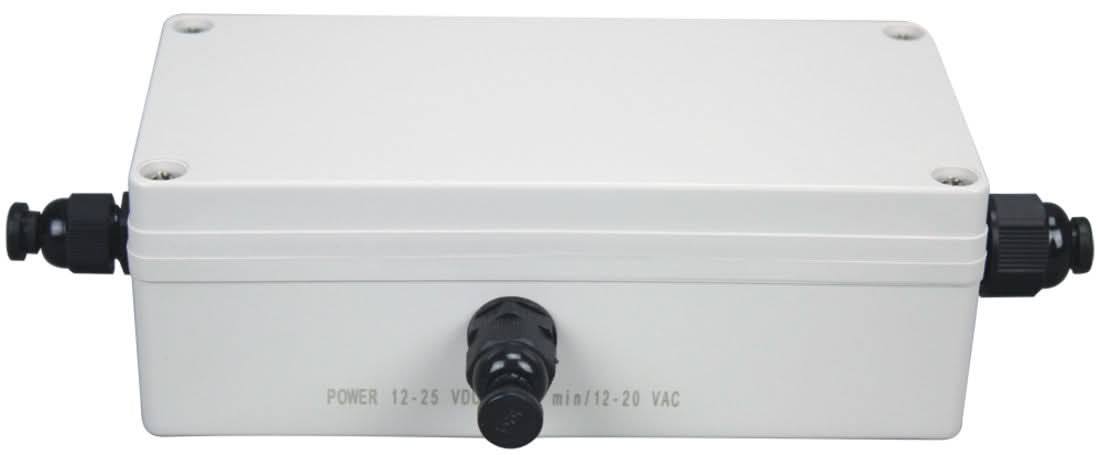

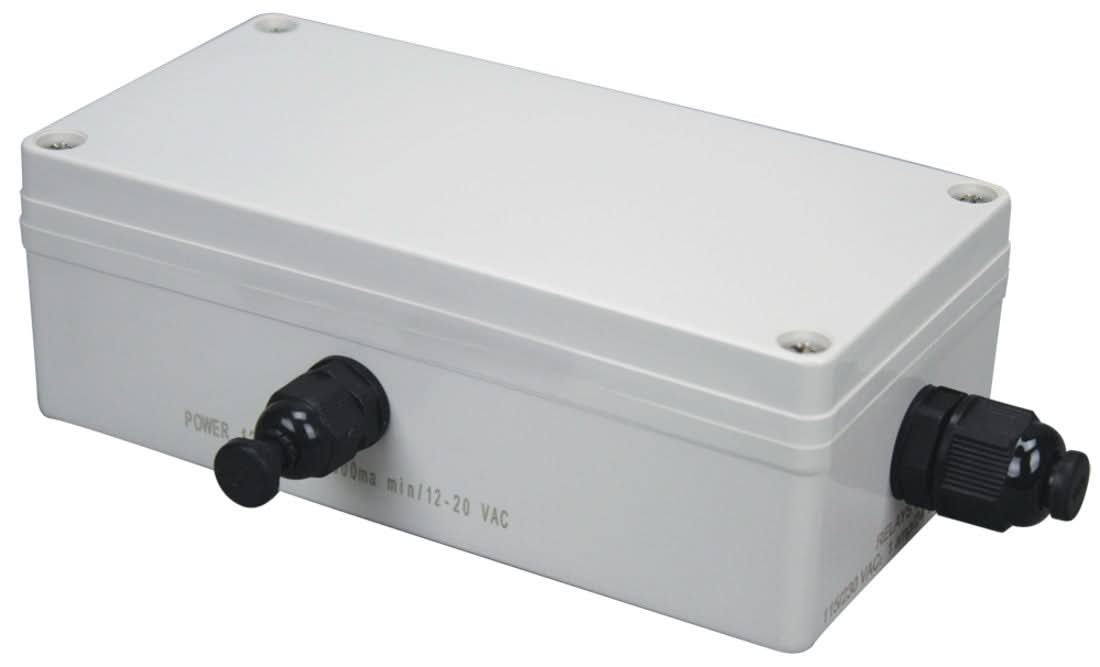

Adam Equipment 1100011297 Relay Box, 2-Year Warranty

Adam Equipment Relay Box — Weight-Triggered Output Control for Automated Weighing

The Adam Equipment relay box (SKU 1100011297) is an output control accessory that interfaces with compatible Adam scales to provide relay-switched electrical outputs triggered by weight thresholds or conditions. It enables automated control of external devices — alarms, conveyors, filling valves, or sorting mechanisms — directly from the scale's measurement output, making it an essential component in integrated, automated weighing systems.

Key Features

• Interfaces with compatible Adam Equipment scales to provide relay-switched outputs
• Enables weight-triggered control of external devices and automated systems
• Supports check-weighing, dosing, filling, and alarm applications without additional controllers
• Compact enclosure suited to bench or panel mounting in production environments
• Delivers reliable switching for the external load connected to the relay circuit
• Backed by a 2-year Adam Equipment warranty

Detailed Overview

Many weighing applications require more than a visual weight reading — they require the scale to actively communicate with other equipment and trigger actions based on measurement outcomes. A check-weighing line may need to divert underweight packages to a reject chute; a filling station may need to close a valve when the target fill weight is reached; an alarm system may need to alert an operator when a load exceeds a set point. Without a relay output, these actions require human intervention for each cycle, limiting throughput and introducing operator error into critical decision points.

The relay box solves this by translating the compatible Adam scale's measurement outputs into relay-switched electrical signals that external devices can directly act upon. Connected to the scale via the appropriate interface, the relay box monitors the weight data and switches its outputs according to pre-set threshold conditions. This allows the weighing system to autonomously control connected equipment — closing a valve, activating a conveyor, sounding a buzzer — without human intervention at each cycle. The result is a more consistent, higher-throughput process with reduced operator burden and lower risk of error at weight decision points. The compact enclosure keeps installation straightforward in both retrofitted and purpose-built weighing stations.

Applications

• Check-weighing lines with automated accept/reject sorting based on weight thresholds
• Automated filling systems requiring valve closure at target fill weights
• Alarm systems alerting operators to overweight or underweight events
• Conveyor and sorting control integrated with floor or bench scale measurement
• Any application requiring physical output control driven by scale weight data

Why Choose the Adam Equipment Relay Box?

The relay box provides a direct, purpose-built bridge between Adam Equipment scale outputs and the external devices that need to respond to weighing results, without the complexity of custom integration work. It extends the automation capability of a compatible Adam scale into practical process control, and the 2-year Adam Equipment warranty ensures the relay box delivers consistent, dependable performance across its operational life.
